১ ২ ইঞ্চি ১.৬এমপিএ চাপ গেজ থ্রি ওয়ে ভালভ ব্রাস বডি সহ

উৎপত্তি স্থল: চীন পরিচিতিমুলক নাম: NBSANMINSE
মডেল নম্বার: 306

বিস্তারিত তথ্য

কোড: 306 থ্রেড জি 1: 1/2"
চাপ গেজ থ্রেড জি 2: M20x1.5 আকার (মিমি: L80 H68 R80
নামমাত্র চাপ: 1.6MPa শক্তি পরীক্ষার চাপ: 2.4MPa
সিল পরীক্ষার চাপ: 1.6MPa অপারেশন তাপমাত্রা: ≤150℃
কাজের মাধ্যম: জল, বাষ্প, তেল উপাদান: ব্রাস
বিশেষভাবে তুলে ধরা:

১.৬এমপিএ থ্রি-ওয়ে ভালভ

,

চাপ গেজ থ্রি-ওয়ে ভালভ

,

১.৬এমপিএ ১ ২ ব্রাস সোলেনয়েড ভালভ

পণ্যের বর্ণনা

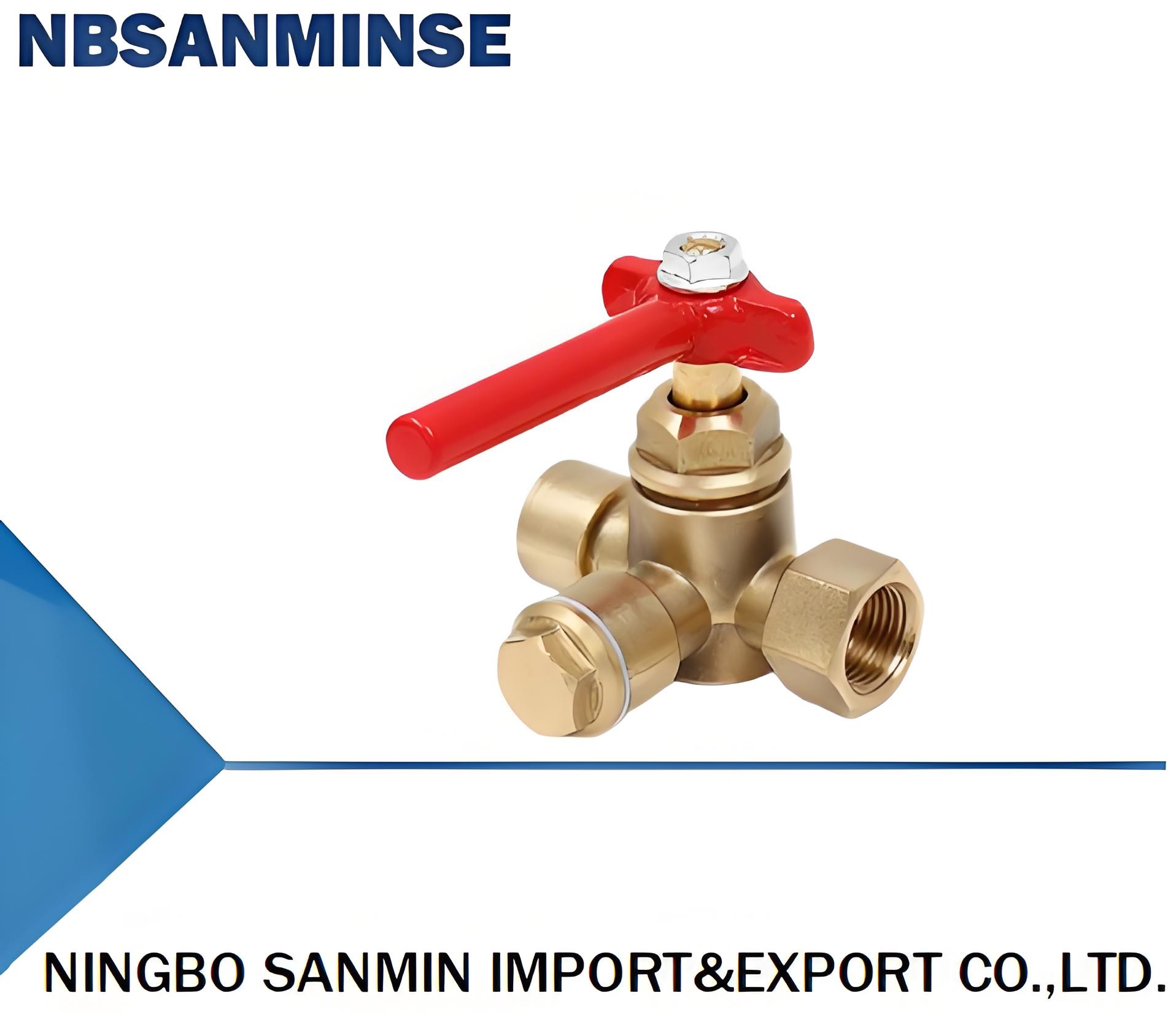

The three-way valve of the 306 pressure gauge can be directly connected to the pressure gauge and is generally used for sealing small flow, high pressure gas or liquid (such as steam, oil) media. Widely used in power plants, steel plants, petroleum, and chemical industries. The pressure gauge three-way valve has the advantages of easy installation and disassembly, tight connection, high fire and explosion resistance, high pressure resistance, and good sealing performance. It is an advanced connection method valve in power plants, oil and chemical equipment, and instrument measurement pipelines.



১ ২ ইঞ্চি ১.৬এমপিএ চাপ গেজ থ্রি ওয়ে ভালভ ব্রাস বডি সহ 0

code thread G1 Pressure gauge thread G2 size(mm)
      L H R
306 1/2" M20x1.5 80 68 80
Nominal pressure 1.6Mpa
strength test pressure 2.4Mpa
Seal test pressure 1.6Mpa
operation temperature ≤150℃
Working medium Water, steam, oil
