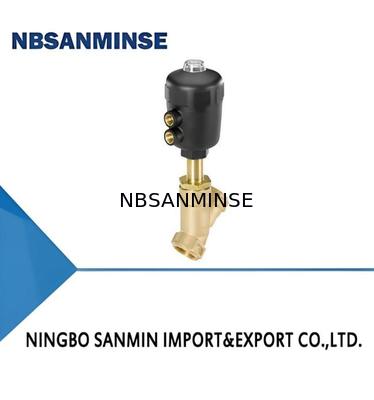

Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator 0 Type 8644
Remote Process Actuation Control System AirLINE
The externally piloted angle seat valve is operated with a single or double acting piston actuator. The actuator is available in two different materials, depending on the ambient temperature. High flow rates are attained with the
virtually straight flow path. The reliable self–adjusting packing gland provides high sealing integrity. These maintenance-free and robust valves can be retrofitted with a comprehensive range of accessories for position indication, stroke limitation or manual override.
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator 1 Type 8640
Customized Pneumatic Systems Solutions for the Processing Industries
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator 2 Type 8697
Pneumatic control for decentralised automation of ELEMENT process valves
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator 3 Type 6012
Plunger valve 3/2 way direct-acting
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator 4 Type 6014
Plunger valve 3/2 way direct-acting
Pneumatically operated 2/2 way angle seat valve CLASSIC Gunmetal body with PA actuator 5 Type 8840
Modular process valve cluster - distribution and collecting

1. General Technical Data

Product properties
Dimensions   More detailed infomation can befound in the chapter  “6.Dimensions”on page 7.
Material   More detailed infomation can be found in the chapter"5.Materials"on page 6.
Design   Angle seat valve
Port connection size   DN10...DN80,NPS%...NPS 3
Safety setting in case of power failure   Nomally closed (control function A),nomally open (control function B)
Flow direction   Flow to open (below seat),Flow to close(aboveseat)
Performance data
Operating pressure   ...25 bar(g),Vacuum up to-0.9 bar(g)(option,see "7.1.Fluidic data"on page 11
Nominal pressure   PN25(DIN EN 1333),Class 150(DIN EN 1759)
Pilot pressure   2...10 bar(g),see"7.1.Fluidic data"on page 11
K,value   3.8...140  m³/h
Media data
Medium   Steam,water,neutral gases,alcohol,oils,fuels,hydraulic fluids,salt solution,alkali
  solutions,organic solvents,for fuel gases of category I,Il andll aoc.to Gas Applianc-
  es Pegulation (EU)2016/426 and oxygen
Medium temperature   -40...230°℃,see"7.2.Operating limits"on page 15
Viscosity   Max.600  mm²/s
Control medium   Air,neutral gases
Process/Port connection &communication
Port   Connections
Threaded connection
G(DIN ISO 228-1)
NPT IASME B1.20.1)
Pc(ISO7-1)
Welded connection      DIN  EN  ISO1127/ISO  4200/DN11866  B
     DIN  118502/DIN  11866 A
     ASME BPE/DIN 11866 C
     SMS 3008
Clamp connection      DIN 32676 B(pipe ISO 4200)
     DIN 32676A(pipe DIN  118502)
     ASME BPE
Pilot air port
Actuator size 40(C)  Thread G%
Actuator size 50(D)...125(H)  Thread G4
Approvals and certificates
Confomity   Food contact 1935/2004(EG),FDA
  Drinking water
  Pressure Equipment Directive
  Gas Appliances Regulation
  Machinery Directive
Approvals  Explosion proof ATEX/IECex
Material certificate  2.2,3.1
Environment and installation
Ambient temperature  -10...140°Csee “2.Product versions”on page 4
Degree of protection  IP67
Installation position  As required,preferably with actuator upright
2.1. Gunmetal body with PA actuator
Product properties
Nominaldiame ter DN10...DN65,NPS%...NPS2
Performance data
Operating pressure 0...16 ban(g),vacuum up to -0.9 bar (gi(option),see 7.1.Huidic data"on page11
Maximum pilot pressure
Actuatorsize 40(C),50[D],
63E),80F),100(G)		 10 ban(g)
Actuatorsize 125H) 7 bang)
Media data
Medum temperature -40...180℃
Product connection
Port connection Threaded connection
Environment and installation
Ambient temperature

-10...60℃see “72.Operating limits”on page 15
